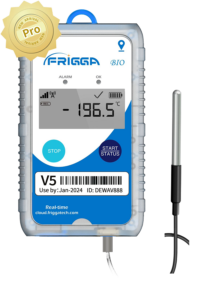

| FRIGGA® V5-(5)-Pro-(Li) SPECIFICATIONS | |
|---|---|
| Usage Type | Multi-Use |
| Monitor Information | Dual Temperature, Light , Shock, Tilt, Acceleration, Location, Motion |
| Location Type | Satellite/GPS, A-GPS, self-developed mixed LBS, Wi-Fi |
| Location Accuracy | Satellite/GPS: 10 m, Wi-Fi Geolocation: 100 m, Cellular Triangulation: 500 m |
| Temperature Sensor | Internal Temperature Sensor (NIST Traceable) |
| Temperature Measurement Range | External : -200°C ~ +100°C ( -328°F ~ 212°F)
Internal : -30°C ~ +70°C ( -22°F ~ 158°F)
|
| Temperature Accuracy Range | ±0.5°C (-20°C to +40°C); ±1°C for other range |
| Resolution (Temperature) | 0.1°C |
| Light Sensor Range | 0~52,000 Lux, detect whether doors or cartons open |
| Tilt Resolution | 0.1° |
| Memory Capacity | Max 28,800 readings |
| Cellular | Global LTE 4G/5G, fallback 2G network. |
| SIM Card | Internal Embedded (Global Data Roaming) |
| Shelf Time | 12 Months |
| Use Time |
120 days (120 Min reporting interval)
60 days (60 Min reporting interval)
30 days (30 Min reporting interval)
20 days (20 Min reporting interval)
10 days (10 Min reporting interval) |
| Data Logging Interval | 10 Min. (settable via platform) |
| Data Reporting Interval | 10 Min. (10/20/30/60/120 Min settable via platform) |
| Environmental Rating | IP64 |
| Cold Chain PDF Report | Get PDF report via USB2.0/ Frigga cloud platform/Frigga Track (Mobile App) |
| Dimensions/Weight | 103 x 61.3 x 23 mm / 160 grams |
| Certifications | FCC, CE, RTCA/DO-160G, UN38.3, ROHS, WEEE, EN12830 |
| Storage temperature range | -10°C to +55°C |
